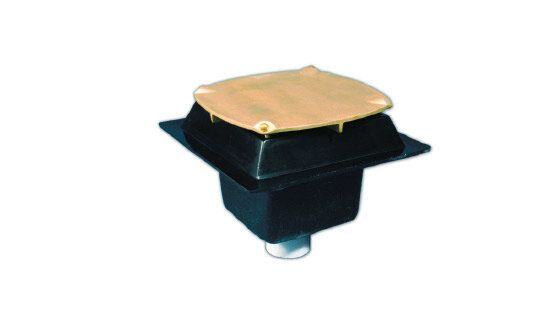

R83 Series Anti-Vortex/Diverter Plate & Sump
R83 Series Anti-Vortex/Diverter Plate & Sump provides a “pour-in-place” suction/discharge FRP sump. Sump may be floor mounted.Product Specification
R-83 Series Anti-Vortex/Diverter Plate & Sump, heavy-duty FRP construction with black gel coat interior finish, integral waterstop, and sealed PVC pipe connection. Includes a 13” square Anti-Vortex/Diverter Plate of cast bronze with integral stand-offs and stainless steel fasteners.
Technical Notes
- FRP sump body intended for formed concrete or funite/shotcrete applications. This product is not intended for pond/pool liner applications.
- Anti-vortex/diverter plate and sump must be bonded utilizing a #8 AWG solid copper wire.
- Sump requires 4 inch thick concrete around sump body.

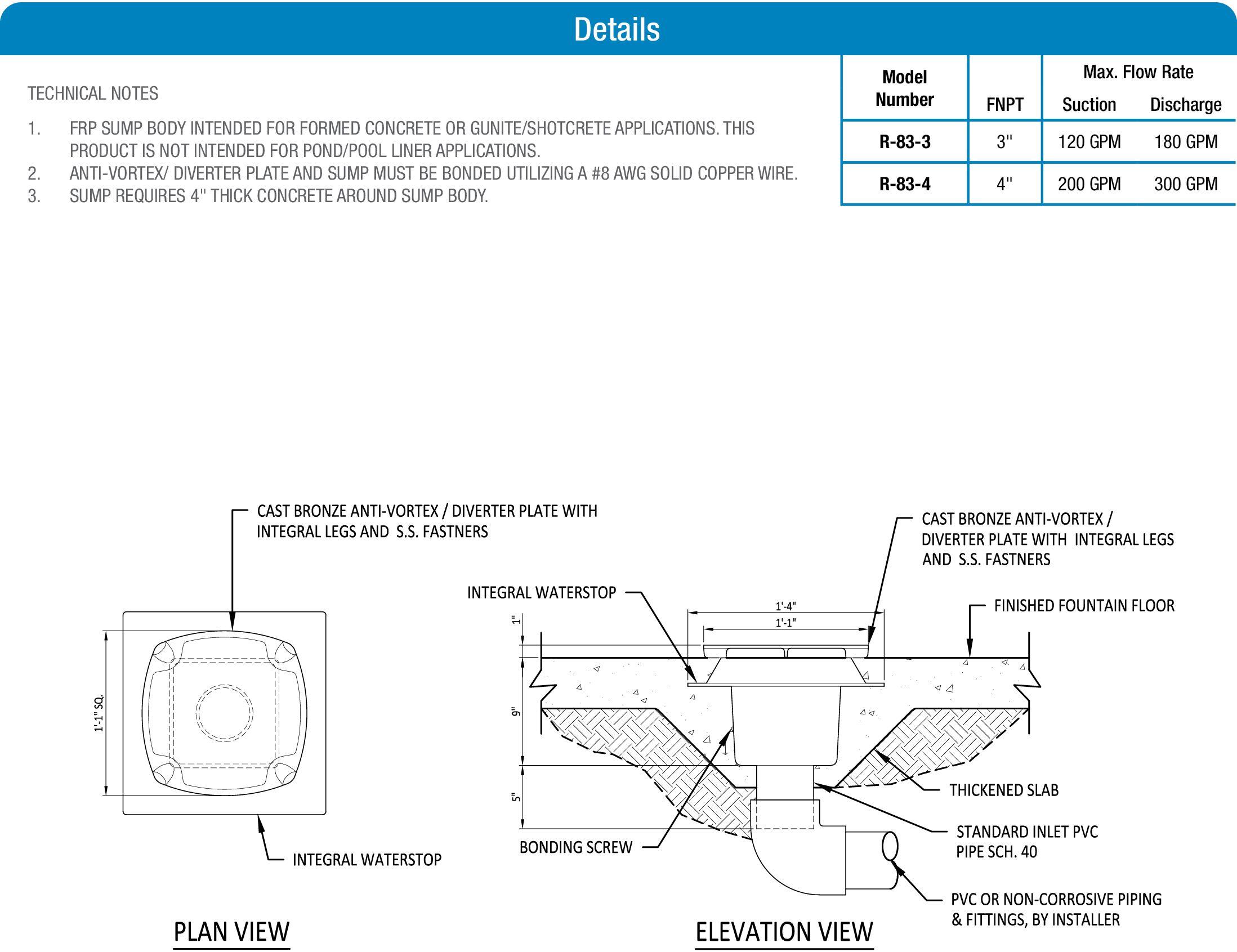

Details
