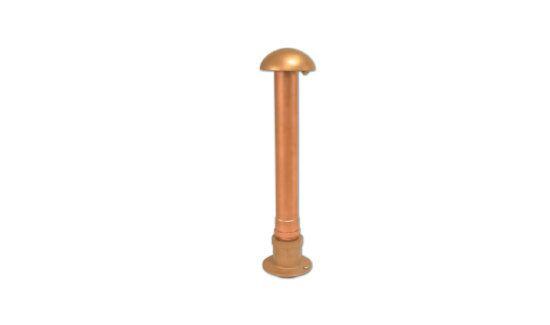

Overflow Standpipe Fitting
FSD Series Overflow Standpipe Drain provides a method of removing excess water that may enter the fountain system from rain, etc. The standpipe portion is removable and allows the fountain basin to be fully drained.
Product Specification
FSD Series Overflow Standpipe Drain; consists of an integral waterstop flange with female threaded connection, ground screw and a removable standpipe drain with secured dome. Construction is of cast bronze with copper standpipe and cast bronze dome in natural finish.
Technical Notes
- Waterstop fitting (included) is required for concrete pour. Size based on piping drain size. (See catalog item: FWS-Series)
- This product is not intended for pond/pool liner applications.
- Waterstop must be bonded utilizing a #8 AWG solid copper wire.
- This fitting is water level dependent.
