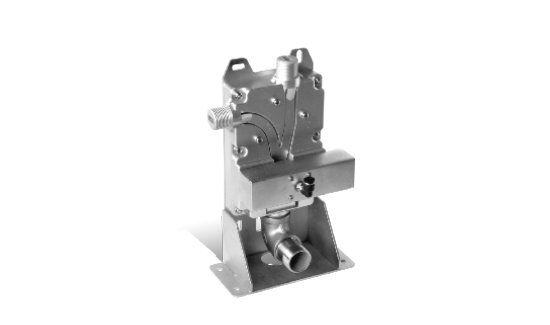

HV Series HydroValve product photo
Back to Products

HV Series HydroValve

The HydroValve is designed, engineered and fabricated as a fast acting, electrically operated directional water changing assembly. The valve allows for (on-off) programming of an attached spray nozzle. The assembly can be utilized for plaza style water features, choreographed fountain shows or may be used for interactive splash pads.

Product Specification

HV Series HydroValve; body is constructed from ABS plastic with Type 316 stainless steel mount and 24VDC (10W) solenoid valve, actuation speeds up to 1/12 second. Unit includes inlet connection (1” for HV-100 models and 1-1/2” for HV-150 model) with (2) two discharge connections (3/4” for HV-100 models and 1-1/2” for HV-150 model), 10’ of SJTOW (18/3) cable pre-attached.

Technical Notes

  1. Assembly requires control panel and pump delivery system.
  2. Nozzle requires fine screening for debris removal. #40 (.0165 inch) mesh or smaller.

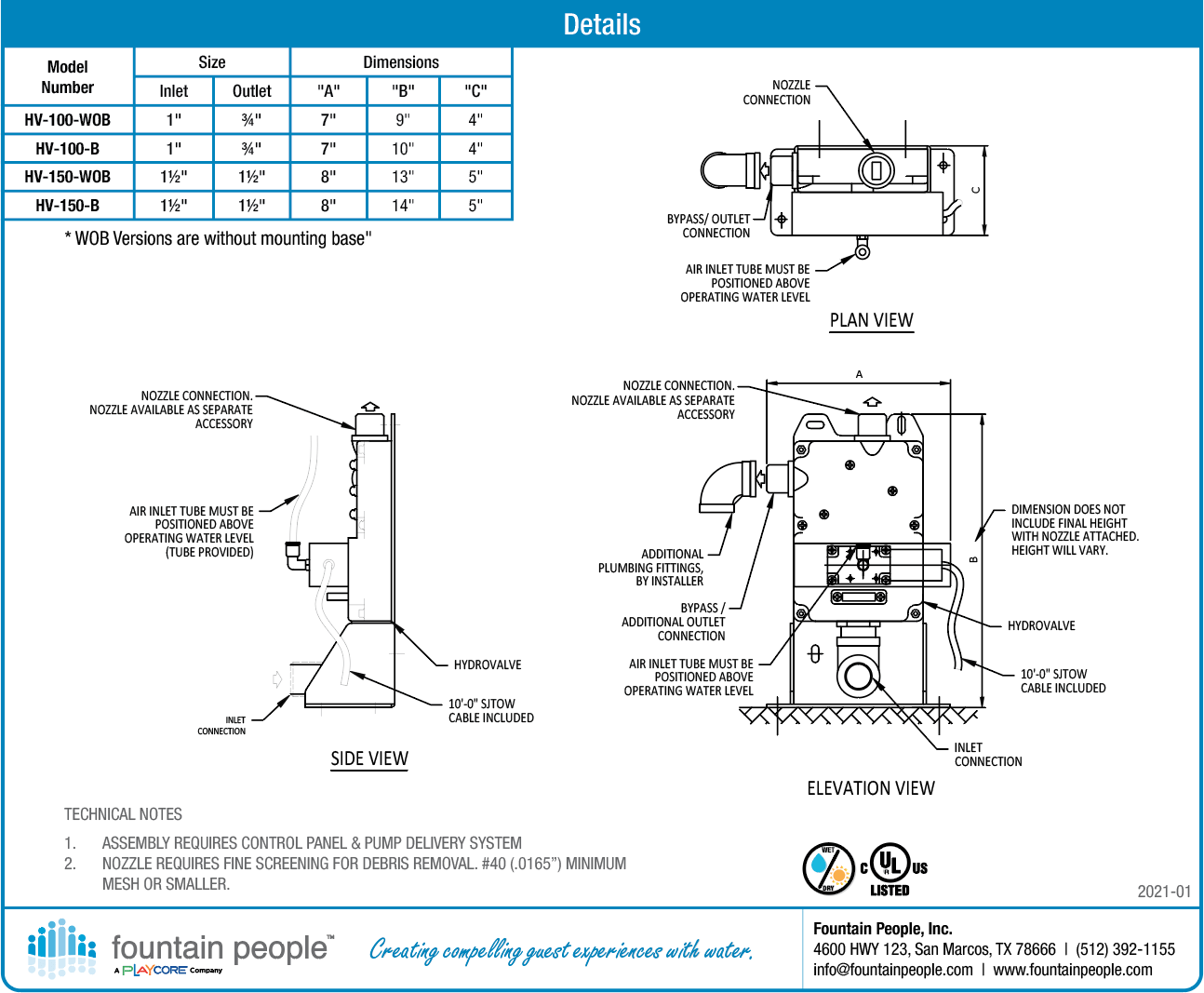

HV Series HydroValve product data chart
