Flush Mount Zero Entry Nozzle

Water Effect:

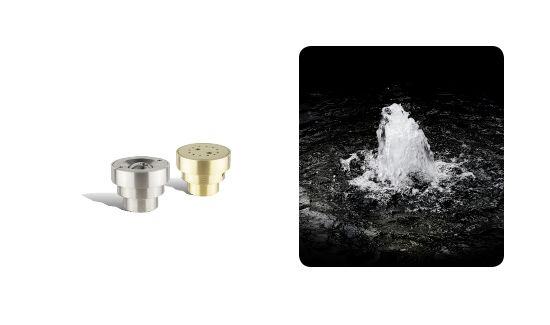

FMN-ZEN Series (Zero Entry) Flush Mount Nozzle produced an aerated bubbler effect that is flush with the concrete surface in the zero-entry area of a pool for operation in 3 to 6 inches of water.

Product Specification:

FMN-ZEN Series (Zero Entry) Flush Mount Nozzle, machined 304 stainless steel, 1 inch FNPT connection, and a stainless steel insert with machined orifice.

flush mount zero entry

Available in machined stainless steel and brass

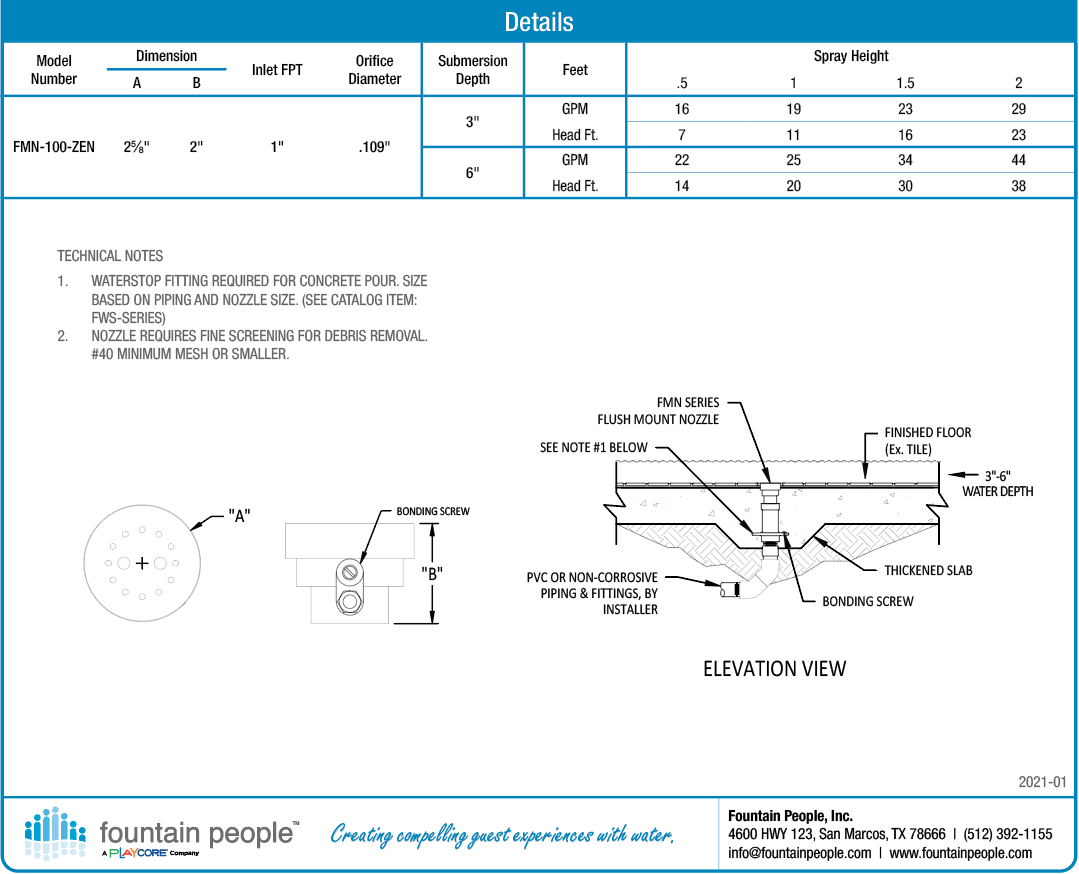

all 2D flush mount small all 2D flush mount flush mount zero entry nozzle details

1. Waterstop fitting required for concrete pour. Size based on piping and nozzle size. (See catalog item: FWS-SERIES)
2. Nozzle requires fine screening for debris removal. #40 minimum mesh or smaller
3. This nozzle is water level dependent.
4. Typical water depth may vary, contact Fountain People for shallower applications.

No downloads available for this product
