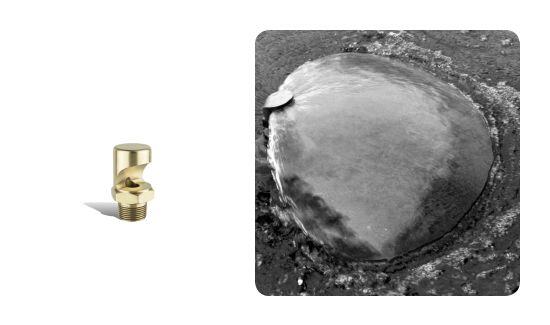

Flood Nozzle
The FLN Series Flood Nozzle provides a transparent, fan-shaped sheet of water. May be mounted in a vertical or horizontal position.
Product Specification
FLN Series Flood fountain nozzle, one piece brass construction, water level independent spray effect. MNPT connection.
- Water Level Dependent: No
- Wind Resistance: Poor
- Sound Level: Low
- Clogging Potential: Moderate
- Splash Radius: 1.0
- Material: Machined brass
- Finish: Natural brass
Technical Notes
- BALL VALVE AS REQUIRED PER DESIGN FOR DISCHARGE FLOW CONTROL.
- WATERSTOP FITTING REQUIRED FOR CONCRETE POUR. SIZE BASED ON PIPING AND NOZZLE SIZE. (SEE CATALOG ITEM: FWS-SERIES)
- TYPICAL WATER DEPTH SHOWN MAY VARY. CONTACT FOUNTAIN PEOPLE FOR SHALLOWER APPLICATIONS.
- THIS NOZZLE IS WATER LEVEL INDEPENDENT.
- FINE SCREENING AT PUMP, HALF THE DIAMETER OF JET ORIFICE OR SMALLER TO MINIMIZE NOZZLE CLOGGING IS RECOMMENDED.

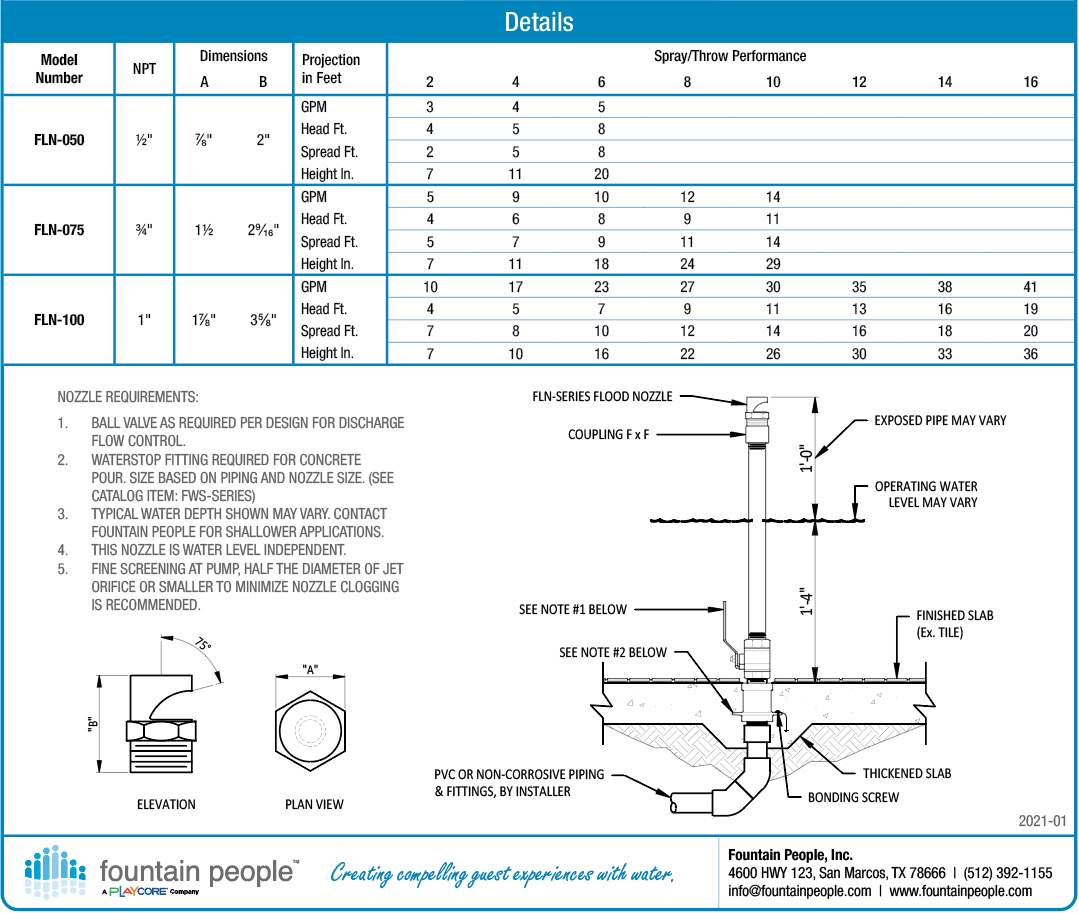

Details
