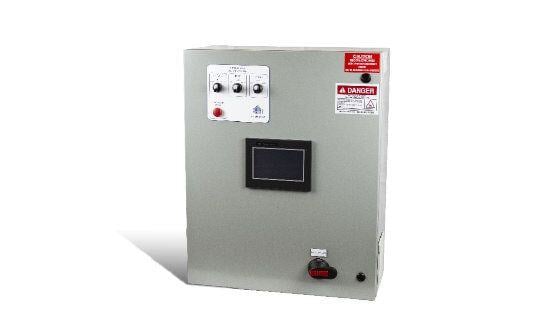

Fountain Control Panel with Touch Screen

The combination pump/light control panel is designed for architectural water features where automatic control is required for display, filtration pump and lighting controls through a PLC & touch-screen interface. Each panel is U.L. 508 listed and pre-tested at the factory.

Product Specification

U.L. 508 Listed Control Panel, includes main disconnect, power distribution breakers (Class ‘A’ GFCI as required); pump contactor w/overload relay; lighting contactor; water level makeup/low level module, interactive touch-screen interface (and programmable logic controller as required), H.O.A. selector switches and field connection terminal blocks. The panel is pre-wired in a NEMA 4 enclosure and factory tested prior to shipment.

Please contact Fountain People for specific project requirements and engineering services.

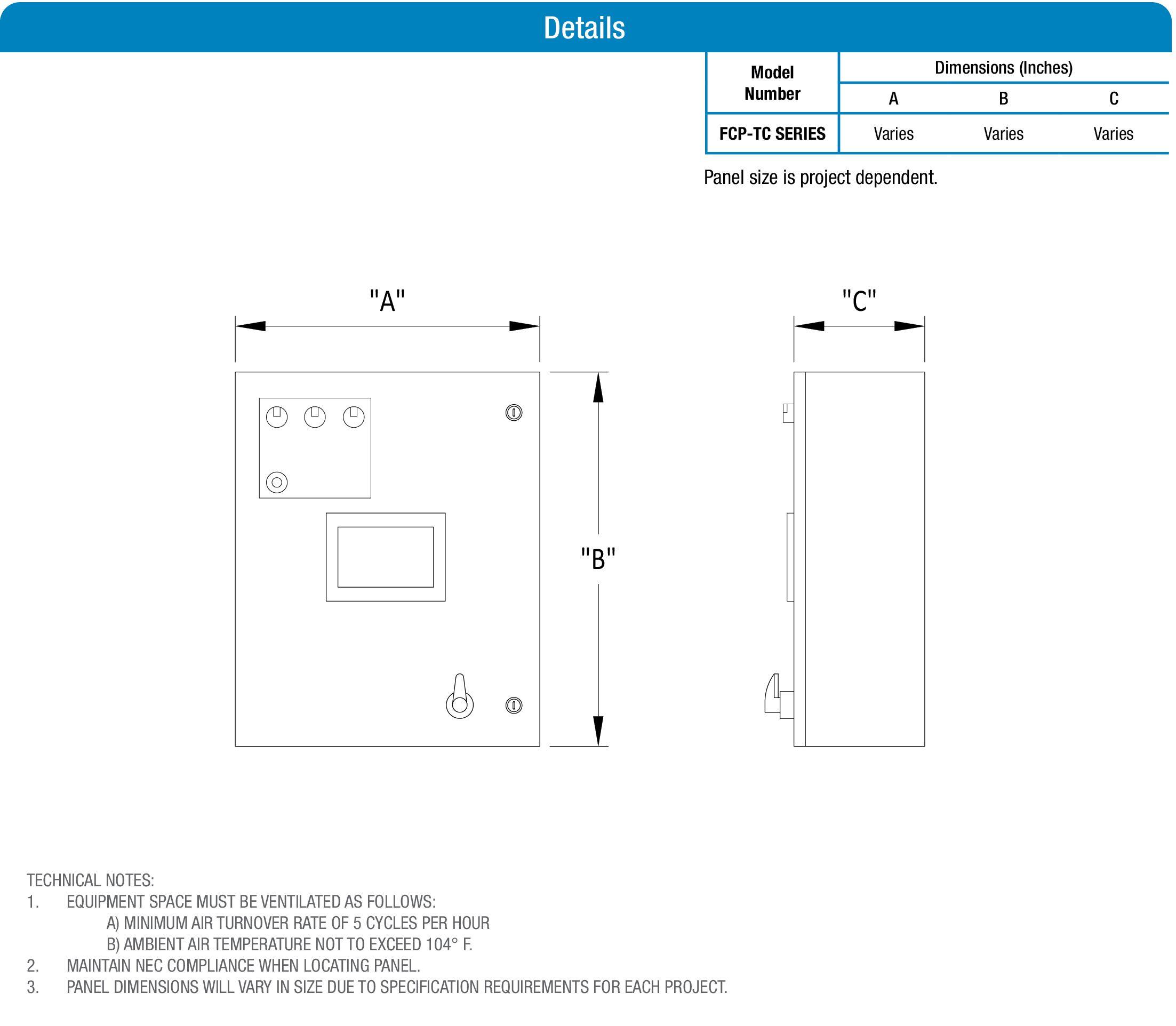

Technical Notes

  1. Equipment space must be ventilated as follows: A) Minimum air turnover rate of 5 cycles per hour B) Ambient air temperature not to exceed 104 degrees Fahrenheit
  2. Maintain NEC compliance when locating panel.
  3. Panel dimensions will vary in size due to specification requirements for each project.
  4. Panel size is project dependent.
