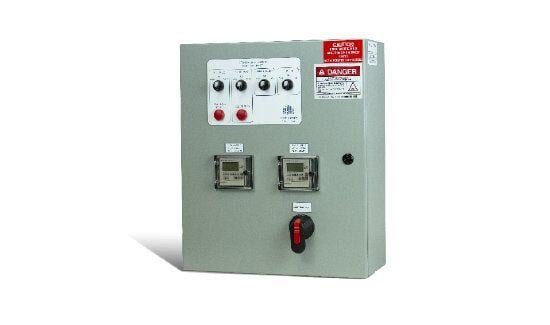

Fountain Control Panel
The combination pump/light control panel is designed for architectural water features where automatic control is required for display, filtration pump and lighting controls. Each panel is U.L. 508 listed and pre-tested at the factory.
Product Specification
U.L. 508 Listed Control Panel, includes main disconnect, power distribution breakers (Class ‘A’ GFCI as required); pump contactor w/overload relay; lighting contactor; water level makeup/low level module, two-channel 24/7 electronic time clock, H.O.A. selector switches and field connection terminal blocks. The panel is pre-wired in a NEMA 4 enclosure and factory tested prior to shipment.
Please contact Fountain People for specific project requirements and engineering services.
Technical Notes
- Equipment space must be ventilated as follows: A) Minimum air turnover rate of 5 cycles per hour B) Ambient air temperature not to exceed 104 degrees Fahrenheit
- Maintain NEC compliance when locating panel.
- Panel dimensions will vary in size due to specification requirements for each product.
- Panel size is project dependent.

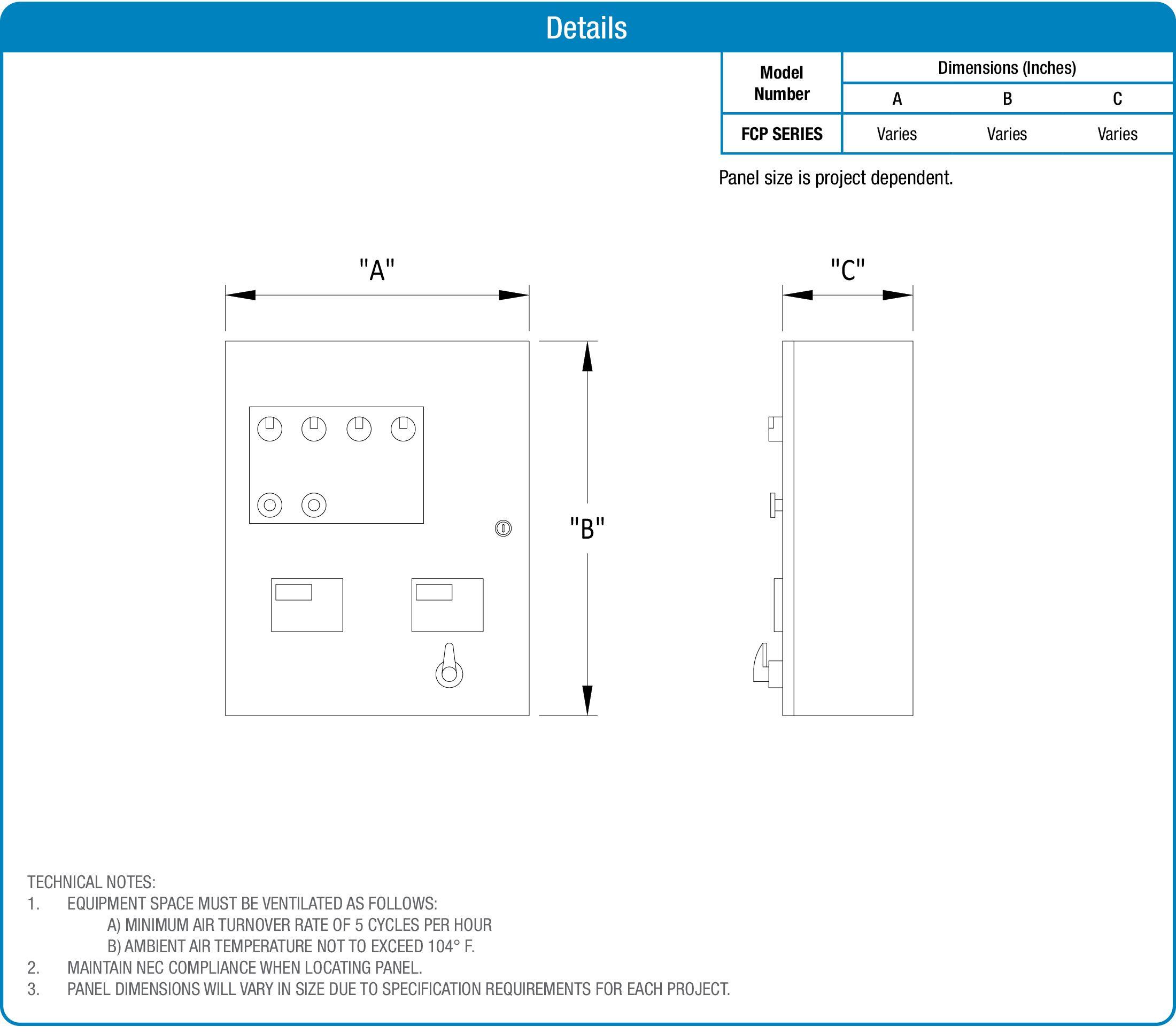

Details
