DSN-2000 Deck Suspended Fountain Nozzle
DSN-2000 Deck Suspended Nozzle is a “set-in-place” hanging nozzle assembly that includes a programmable (on-off) spray effect and 360 degree illuminating LED light fixture. The nozzle assembly deigned to be positioned within a floating paver deck platform. This flush mounted assembly provides no visible body of water as all water emitted from the nozzles flow through grate cover located at each fixture. Additional drainage is achieved through the spacing between each paver and the emitted water flows into the hidden reservoir beneath the pavers. This unit is also available in a UL Listed H20 load-rated stainless steel cover for vehicular traffic.
Product Specification
DSN-2000 Deck Suspended Nozzle; includes Type 304 stainless steel drain cover with interchangeable fountain nozzle, 360-degree 24V, 36 Watt, LED ring light with colored RGBW diodes, fast acting Hydro-Valve, patent-pending top-access manual height adjustment valve. Nozzle assembly is pre-attached to drain cover for ease of maintenance and removal. Assembly is designed to be mounted and anchored into a recessed architectural paver system. A 1” PVC connection is provided to allow flexible hose to be attached for easy removable and servicing. The light fixture includes additional cable length for assembly/removal.
Technical Notes
- Nozzle requires fine screening for debris removal. #8 (3/32 inch) minimum mesh or smaller.
- Housing must be encapsulated in concrete.
- Two 1 inch connection points available. Only one utilized for 3000 series.

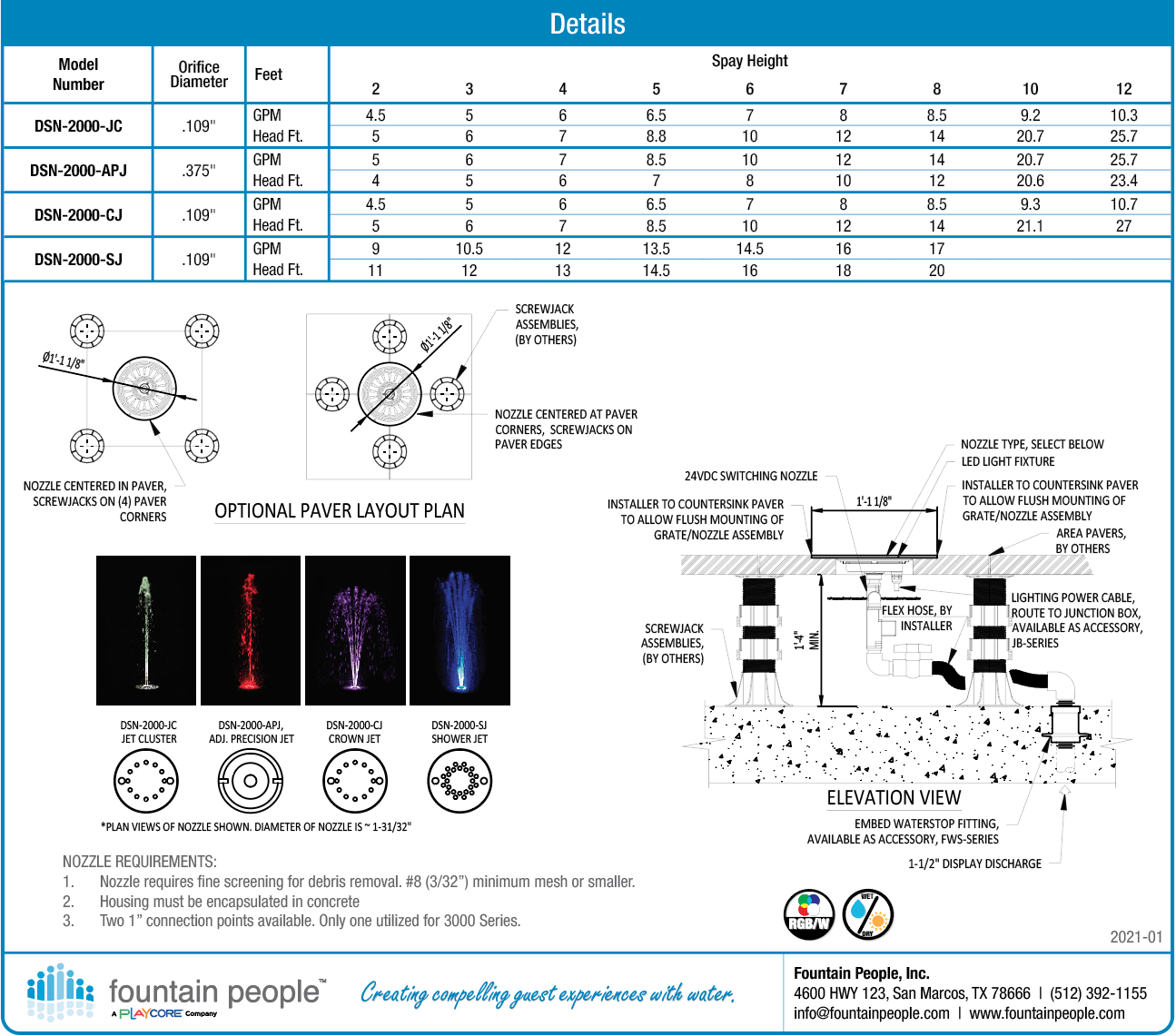

Details
