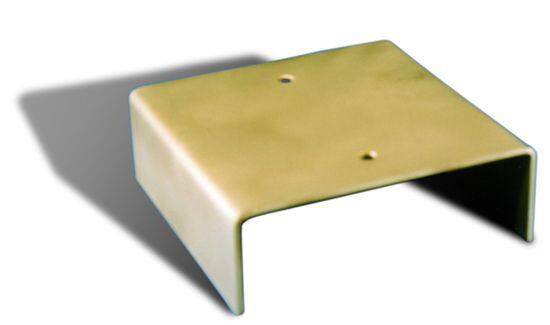

DIV-PL Series Diverter Plate product photo
Back to Products

DIV-PL Series Diverter Plate

DIV-PL Series Diverter Plate is used for as either an anti-vortex device or a diverter device in narrow troughs and pool where bi-directional flow is required, and surface turbulence needs to be minimized.

Product Specification

DIV-PL Series Diverter Plate; consists of a 1/8” thick brass (C-channel) bent plate. Construction is brushed natural finish with 5/16” clearance holes for a 1/4” stainless anchors, by installer.

Technical Notes

  1. Waterstop fitting intended for formed concrete or gunite/shotcrete applications. This product is not intended for pond/pool liner applications.
  2. Waterstop must be bonded utilizing a #8 AWG solid copper wire.

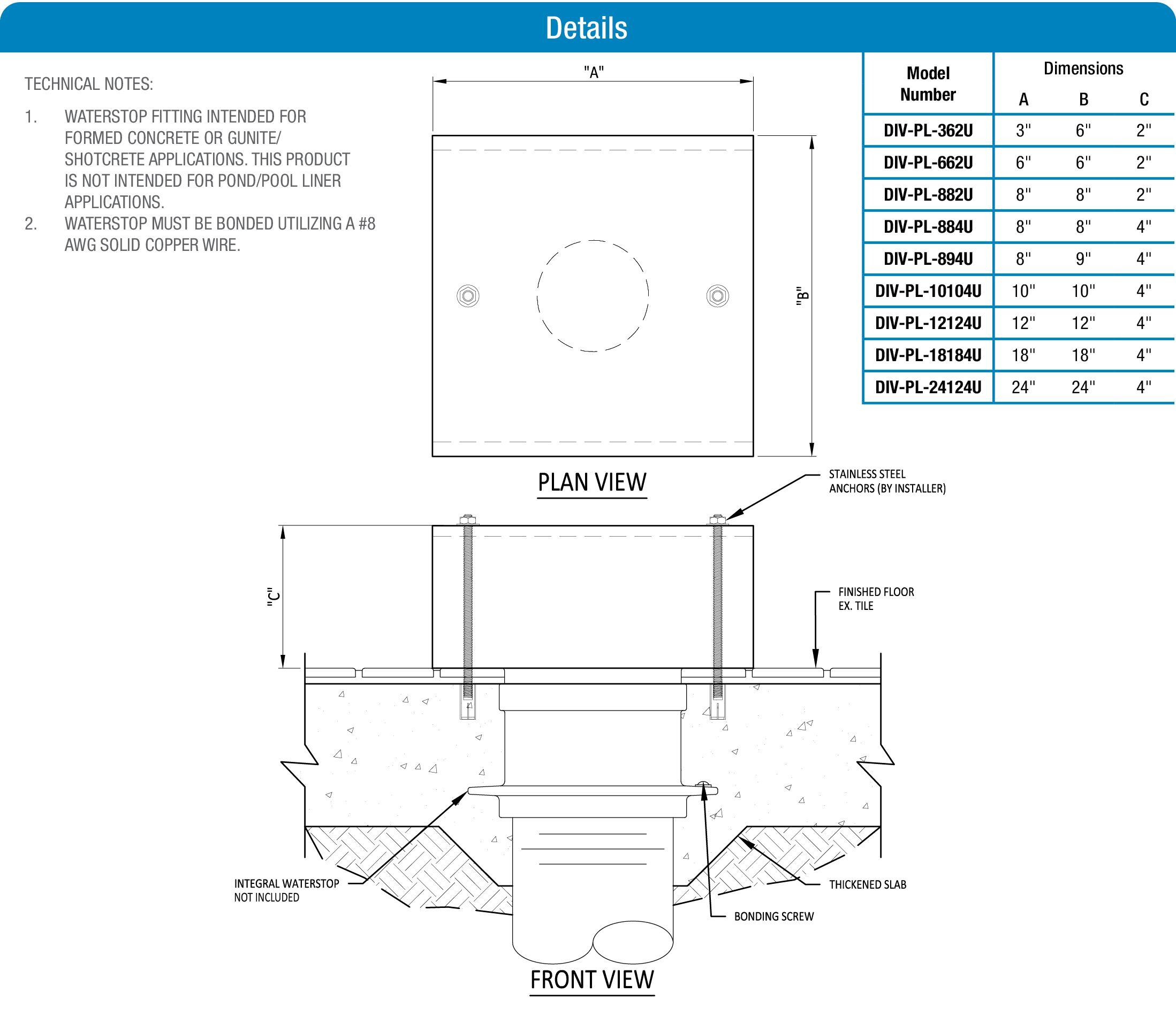

DIV-PL Series Diverter Plate product data chart
