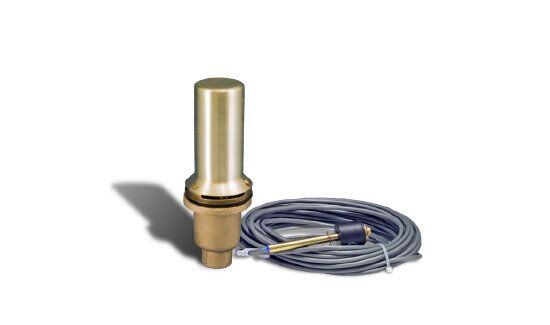

Conduit Mounted Sensor Housing

CWL-002C is a conduit mounted water level sensor. The assembly utilizes a low profile, vertical sensor assembly positioned at the operating water level. Typical use of the dual function sensor allows for automatic water fill valve control and low water pump shut off.

Product Specification

CWL-002C Conduit Mount Water Level Sensor, cast bronze housing base with spun brass cover, dual function water level sensor with 100 feet of integral cable, 34” adjustability range. 12” female threaded conduit connection.

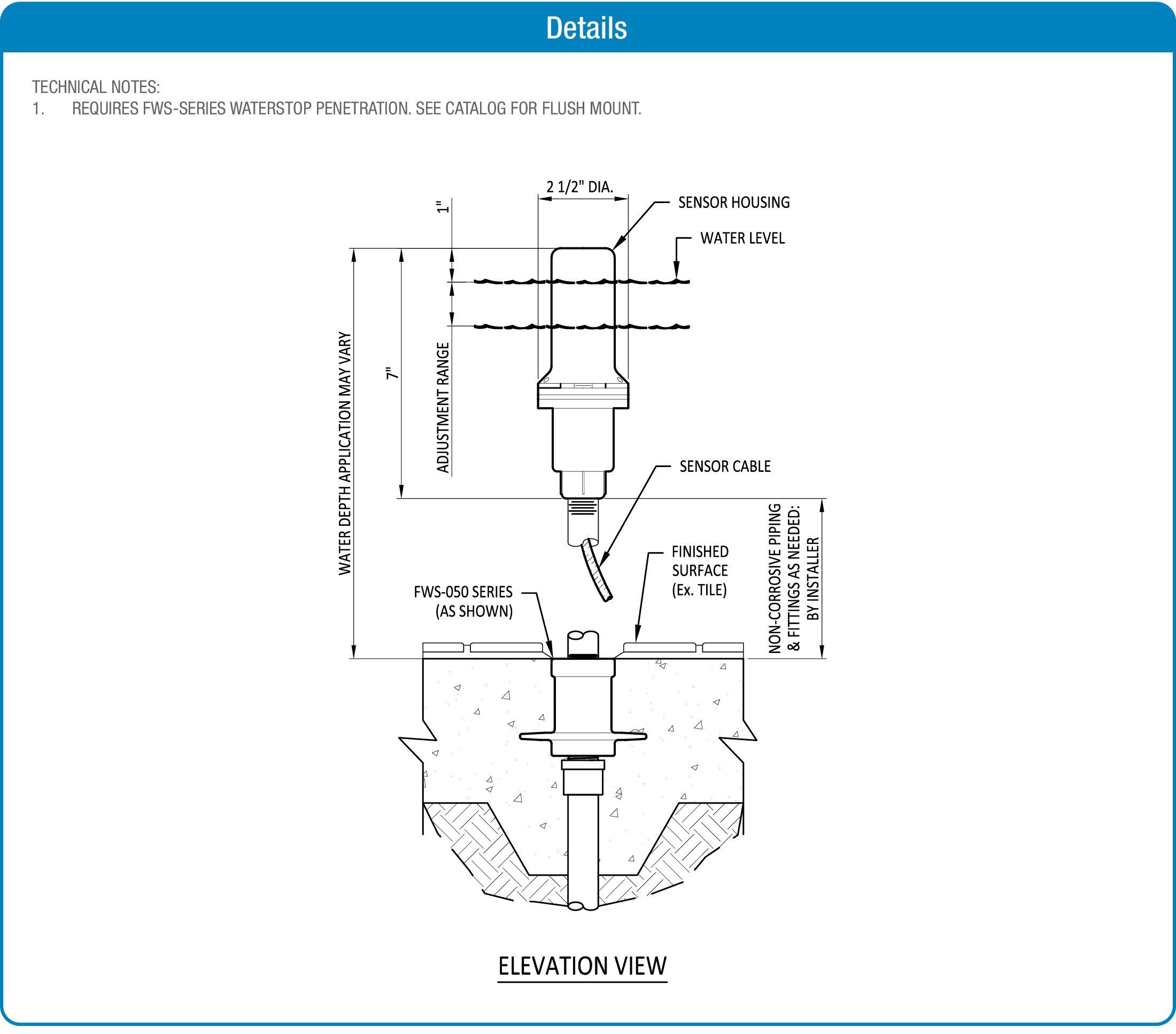

Technical Notes

  1. Requires FWS-Series waterstop penetration. See catalog for flush mount.
