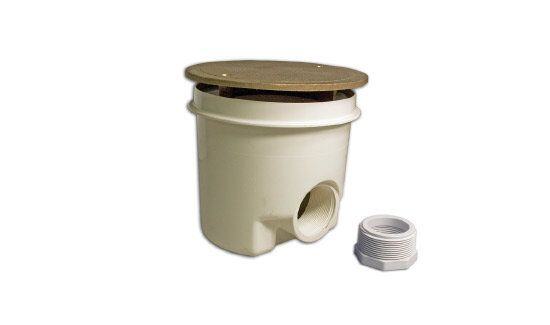

Anti-Vortex/Diverter Plate and Sump product photo
Back to Products

Anti-Vortex/Diverter Plate and Sump

FAS-08 Anti-Vortex/Diverter Plate & Sump provides a “pour-in-place” suction/discharge assembly. The sump is designed to be floor mounted.

Product Specification

FAS-08 Anti-Vortex/Diverter Plate & Sump, heavy duty abs sump body with 2” threaded side connection. Includes an 8” diameter anti-vortex/diverter plate of cast bronze with integral legs and stainless steel fasteners.

Technical Notes

  1. ABS sump body intended for formed concrete or gunite/shotcrete applications. This product is not intended for pond/pool liner applications.
  2. Anti-cortex/diverter plate and sump must be bonded utilizing a #8 AWG solid copper wire.
  3. Requires a 4 inch thick concrete around sump body.

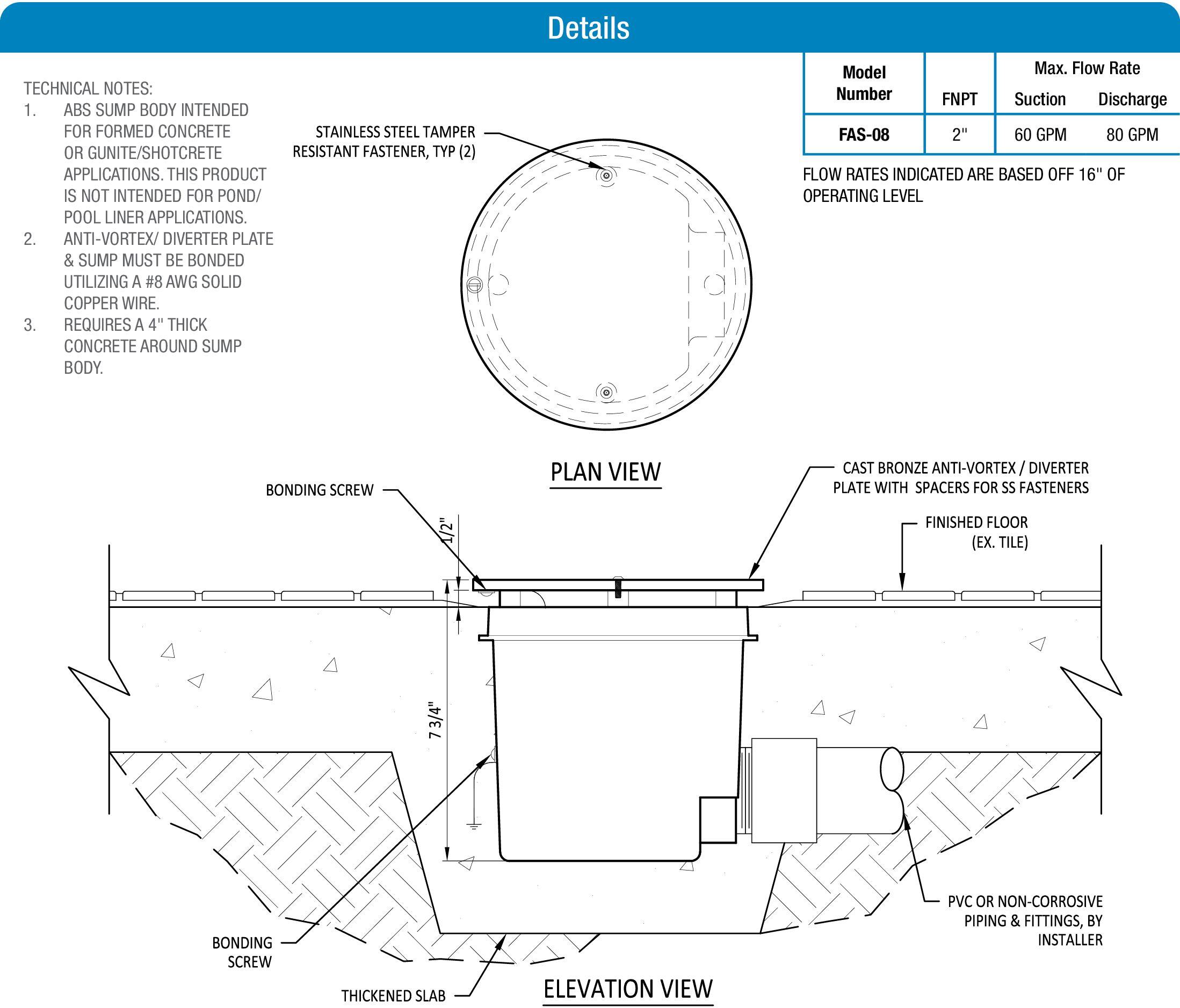

Anti-Vortex/Diverter Plate and Sump product data chart
