Fan Jet

FAN Series Fan fountain nozzle, machined cast bronze construction, water level independent spray effect, integral adjustment swivel up to 15° off vertical that provides adjustability to create different fan shapes. FNPT connection.

Product Specification

  • Water Level Dependent – No
  • Wind Resistance – Fair
  • Sound Level – Low
  • Clogging Potential – Low
  • Splash Radius – 1.5
  • Material: Machined cast bronze
  • Finish: Natural bronze

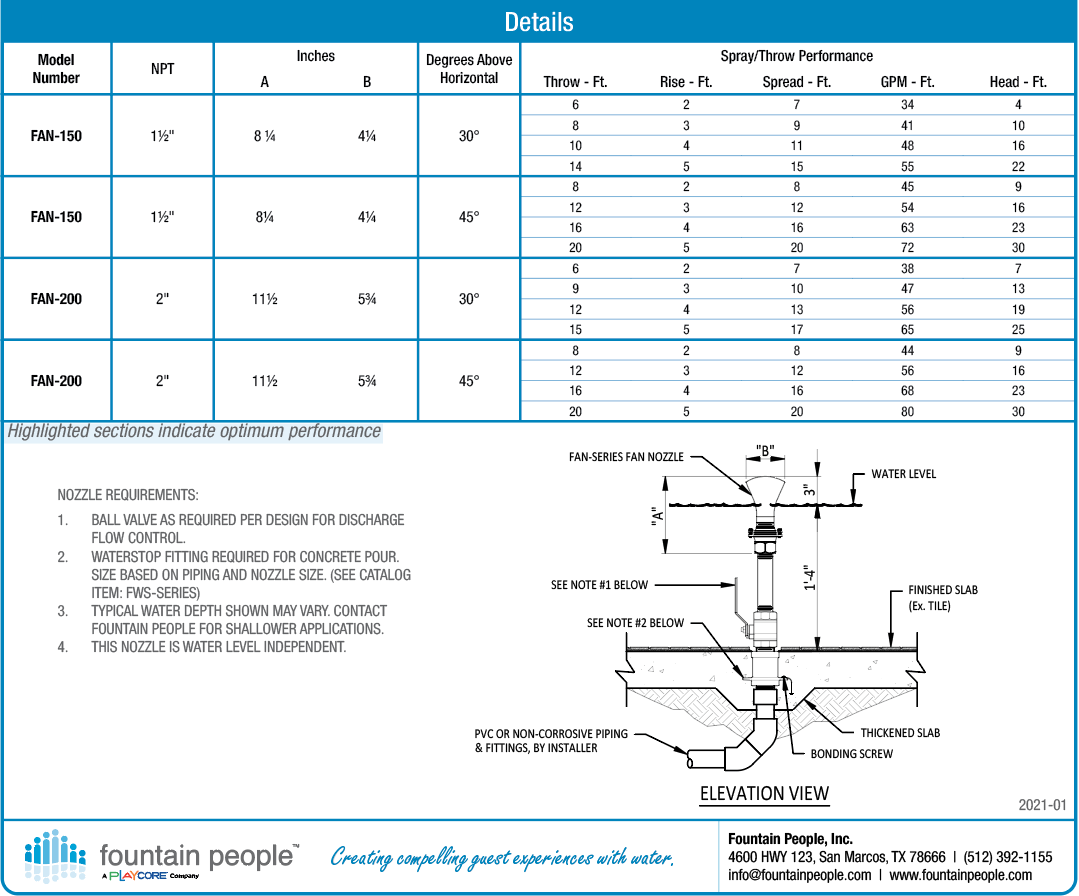

Technical Notes

  1. Ball valve as required per design for discharge flow control.
  2. Waterstop fitting required for concrete pour. Size based on piping and nozzle size. (See catalog item: FWS-SERIES)
  3. Typical water depth shown may vary. Contact Fountain People for shallower applications.
  4. This nozzle is water level independent.
