Crystal Dome

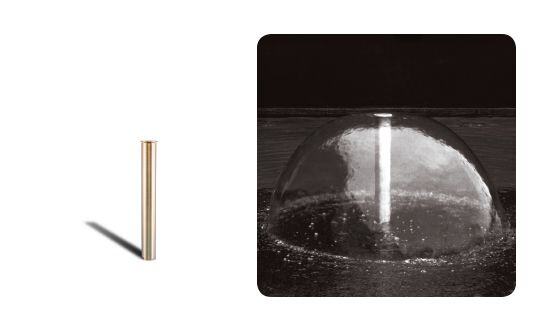

CDN Series Crystal Dome fountain nozzle, brass machined with brass diverter. FNPT connection.

Product Specification

  • Water Level Dependent – No
  • Wind Resistance – Poor
  • Sound Level – Low
  • Clogging Potential – Moderate
  • Splash Radius – 1.5
  • Material: Machined brass
  • Finish: Natural brass

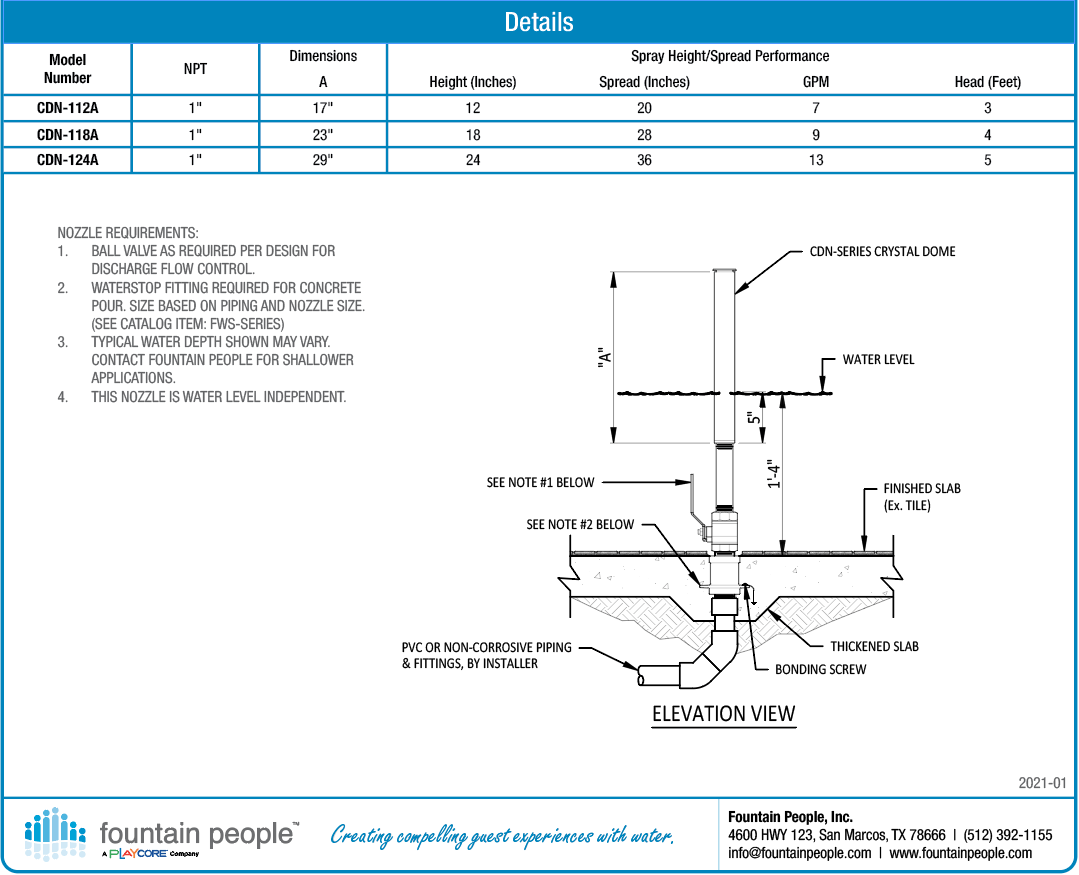

Technical Notes

  1. Ball valve as required per design for discharge flow control.
  2. Waterstop fitting required for concrete pour. Size based on piping and nozzle size. (See catalog item: FWS-SERIES)
  3. Typical water depth shown may vary. Contact Fountain People for shallower applications.
  4. This nozzle is water level independent.
