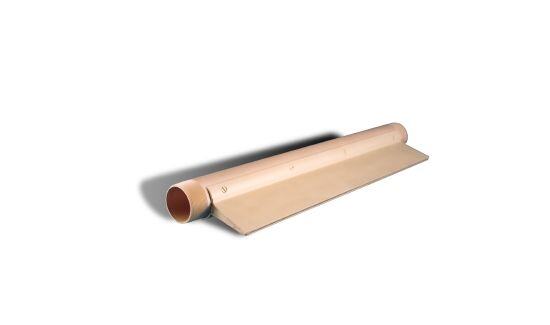

Clear Sheet Bar

The fine sheet effect is subject to wind distortion. 100% filtration of #40 mesh (minimum) strainer is recommended to minimize maintenance. CSB Series Clear Sheet Bar, machined brass with a natural finish, 2 inch threaded both ends.

Product Specification

  • Water Level Dependent – No
  • Wind Resistance – Poor
  • Sound Level – Low
  • Clogging Potential – High
  • Splash Radius – 1.5 – 2.0
  • Material: Machined brass
  • Finish: Natural brass

Technical Notes

  1. Nozzle requires fine screening for debris removal. #40 mesh or smaller.
  2. Component must be bonded utilizing a #8 AWG solid copper wire.
  3. This fitting is water level independent.
